Grinding Plant in Container
Grinding Plant in Container

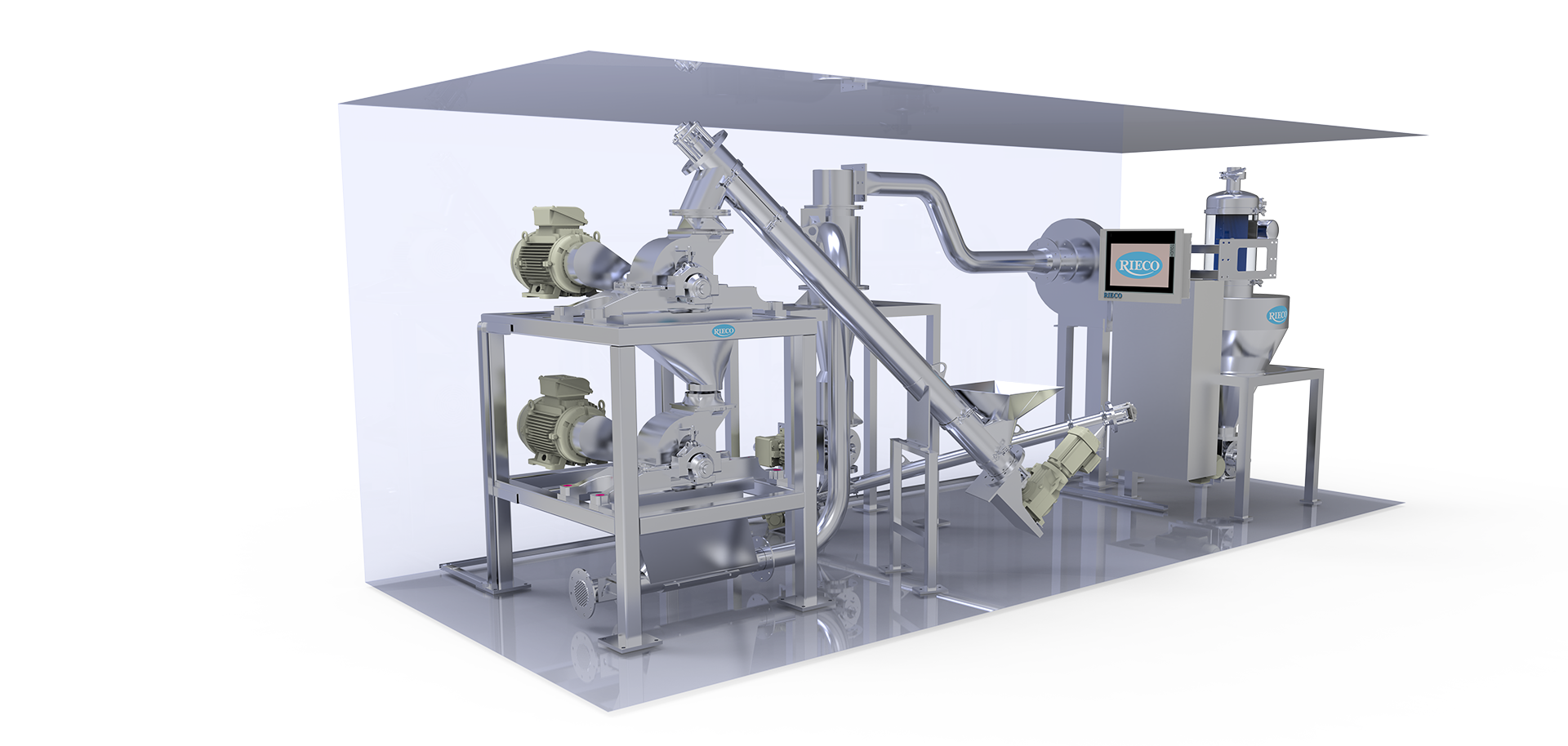

The Grinding Plant in Container is an innovative 'plug-in and grind' powder processing solution, optimized for the food industry. This two-stage pulverizing plant is ingeniously assembled within a shipping container, featuring an integrated control panel for streamlined operations. Its design allows for efficient size reduction of various powders, ensuring top performance in diverse applications.
Enquire NowMicronex-20

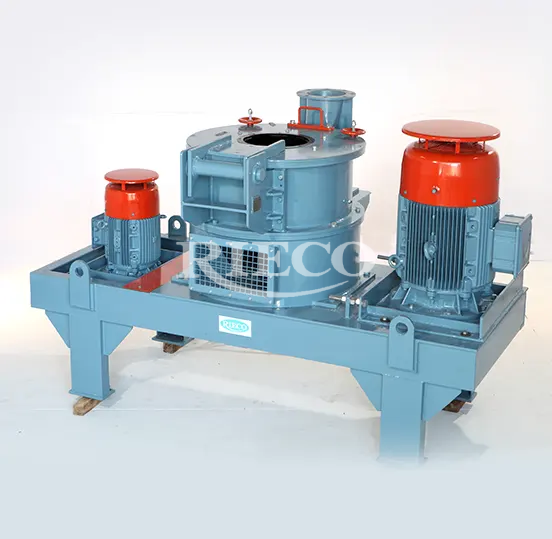

The Micronex-20 is an exceptionally versatile pulverizing mill capable of disintegrating a wide range of materials. From lumpy and bulky to irregularly shaped, hard, and fibrous materials, it transforms solids into coarse to medium-fine powders using advanced impact and shear size reduction techniques. Two rotor designs are available: the Bar Hammer rotor and the LFS Hammer rotor, catering to different application requirements.
PIC contains following equipment-
- 2-Stage Micronex Mills: Ensures thorough pulverization for consistent results
- Micronex-20 Specifications:
- Motor Power: 15-20 HP
- Feed: Gravity Feed
- Rotor Speed: Max 6900 rpm
- Rotor Type: Bar Type Rotor
- Highly Efficient Cyclone: Minimizes material loss and maximizes yield
- Pulse Jet with Pleated Type Bag: Maintains a clean work environment by capturing fine particles
- Integrated Control Panel with VFD, HMI, IoT: Enables smart operation and control of the plant
- Material Feeding Screw Arrangement: Ensures consistent and controlled input
- Side Channel Blower: Provides suction for efficient material handling
- Screw Conveyor: Facilitates smooth material discharge
